FMC ADC & DAC
ADF-QMx44
Quad 12 Gsps 16-bit DAC & Quad 4 Gsps 12-Bit ADC
- Wide Dynamic Range
- High Channel Density
- Ideal for SWaP-C Sensive Application
- Designed for Xilinx UltraScale and UltraScale+ FPGA Carrier Boards
- Built-in Clock Jitter Cleaner
- Configurable digital up/down conversion (DDC/DUC)
ADF-O1414: Octal 1.4 Gsps, 14-Bit ADC FMC+
14-Bit ADC FMC+ JESD204B Interface
- Up to 2GHz of usable analog input full power bandwidth – AC Coupled. 1GHz DC Coupled
- External clock 240MHz – 1.4GHz
- High-speed SERDES interface for multi-Gigabyte 10 throughput to host FPGAs
ADF-O310: Octal 310 Msps
16-bit ADC FMC Module
- 80 Msps to 310 Msps sampling rate
- Up to 465 MHz of usable analog input full power bandwidth
- Parallel LVDS Interface
- Built-in jitter cleaner
- Analog Devices part: AD9652

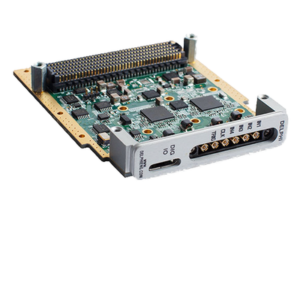

ADF-Q3114: Quad 3.1 Gsps, 14-Bit ADC FMC+
JESD204B Interface: x16 Lanes
- Quad channel 3.1 Gsps 14-bit ADC
- JESD204B SERDES Interface: x16 Lanes
- Designed for VITA 57.4 compliant FMC + Carrier Boards: Kintex UltraScale & Virtex 7 FPGAs
- Four internal digital down-converters per channel
ADF-DAC-Q30: Quad 12.0 Gsps 16-Bit DAC FMC+ Module
Quad Channel DAC on a Single FMC+ Module
- Quad Channel DAC on a Single FMC+ Module
- Wide Dynamic Range
- Convection and Conduction-Cooled Versions
- Enables SWaP-C Sensitive Systems: High Density, Small Footprint, Low Power
ADF-Q1214 Quad 1.25 Gsps, 14-Bit ADC FMC
Highest Resolution 1.25 GHz ADC FMC on the Market
- Quad channel 1.25 Gsps, 14-bit ADC
- JESD204B SERDES Interface: x 8 Lanes
- Works with carrier board of your choice
- VITA 57 compliant FMC works with Altera and Xilinx FPGAs
ADF-D3030: Quad 1-2 Gsps, 12-Bit ADC FMC
Dual 3.0 Gsps, 14-Bit ADC & Dual 3.0 Gsps, 16-Bit DAC FMC
- Wide Dynamic Range for both ADC and DAC
- Dual ADC/DAC on a Single FMC Module
- Convection and Conduction-Cooled Versions
- Enables SWaP-C Sensitive Systems: High Density, Small Footprint, Low Power
ADF-D2000: Dual 2.0 Gsps, 12-Bit ADC FMC
Highest Resolution 2 GHz ADC FMC Product on the Market
- DUAL 1.0, 1.6, 1.8, or 2.0 Gsps sampling rate at 12-bit.
- Single channel mode up to 4.0 Gsps
- 12-bit ADC (Interleaved Up to 2.8GHz Input Bandwidth
- FMC/VITA 57 form factor
- Works with Xilinx and Altera FPGAs
- Air & Conduction-Cooled
ADF-Q25: Quad 250 Msps, 16-Bit ADC FMC
High-Density, High-Resolution ADC FMC
- Quad 250 Msps sampling rate at 16-bit
- Up to 900 MHz Input Bandwidth
- FMC/VITA 57 form factor
- Works with Xilinx and Altera FPGAs
- Air & Conduction-Cooled
DAC-D2500: Dual 2.5 Gsps, 14-Bit DAC FMC
DAC-D2500 Dual 2.5 Gsps, 14-Bit DAC
- Dual DACs – 2.5Gsps sampling rate at 14-bit
- 2.3GHz Output Bandwidth
- Works with Xilinx and Altera FPGAs
- Air & Conduction-Cooled
ADF-3000: 3.0 Gsps, 10-Bit ADC FMC
3.0 Gsps, 10-Bit ADC FMC Module
- 500Msps to 3.0 Gsps sampling rate at 10-bit
- 2.6Gsps Option Available
- Up to 5GHz Input Bandwidth FMC/VITA 57 form factor
- Air & Conduction-Cooled
