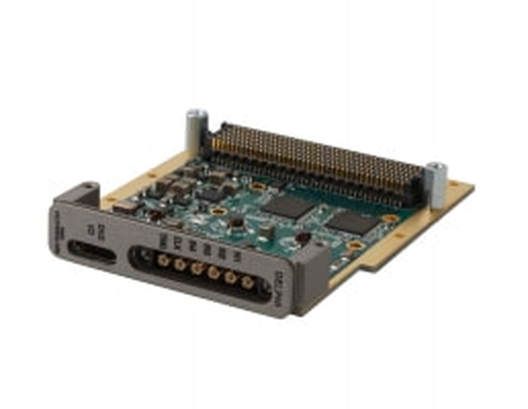

Quad 250Msps, 16-bit ADC FMC

High-Density, High-Resolution ADC FMC

  • Quad 250 Msps sampling rate at 16-bit
  • Up to 900 MHz Input Bandwidth
  • FMC/VITA 57 form factor
  • Works with AMD and Altera FPGAs
  • Air & Conduction-Cooled
  • Analog Devices part: AD9467
Download Datasheet

Please fill out form below to download datasheet.

  • This field is for validation purposes and should be left unchanged.

Direct Coupling of Unparalleled Analog-Digital Conversion Capability

This FPGA Mezzanine Card (FMC) converts four channels of up to 900 MHz analog input bandwidth at 250 Msps and 16-bit resolution. Based on the VITA 57 specification, the ADF-Q25 enables direct coupling of unparalleled analog-digital conversion capability with the VME/VXS/AMC/VPX/PCI-E carrier board of your choice. DEG engineers have designed this product and associated HDL firmware to work with both Altera and AMD FPGAs.

Cost-Effective, Compact & Rugged

The ADF-Q25 is based on the Analog Devices AD9467 Analog-Digital Converter.  By coupling this core architecture with the compact and flexible FMC form factor, DEG has enabled customers to build cost-effective compact & rugged systems with 4-8 channels of high-speed digitization in a single high performance processor/carrier board. This flexible approach reduces overall power consumption, footprint, and cost while increasing ruggedness and reliability.

Fastest 16-Bit ADC FMC

The ADF-Q25 is DEG’s fastest 16-bit ADC FMC product. By compressing four industry-leading Analog-Digital Converters in the FMC form factor, DEG engineers created the highest density SIGINT FMC product in the embedded marketplace.
