DAC-O12G16
Octal 12GSPS 16-bit DAC
JESD204C Interface x16 Lanes @ 24.75 Gbps
-
- Analog Devices Part Number: AD9177
- Octal 16-bit, 12 GSPS DAC
- Designed for AMD Versal and UltraScale+ FPGA Carrier Boards
- Configurable digital up/down conversion (DDC/DUC)
- VITA 57.4 FMC+ Form Factor
- Multi-Card Channel Alignment
- Built-In Clock Generation or External Clock or Reference
- Convection and Conduction-Cooled Versions
Download Datasheet
Please fill out form below to download datasheet.
* INDICATES REQUIRED FIELD

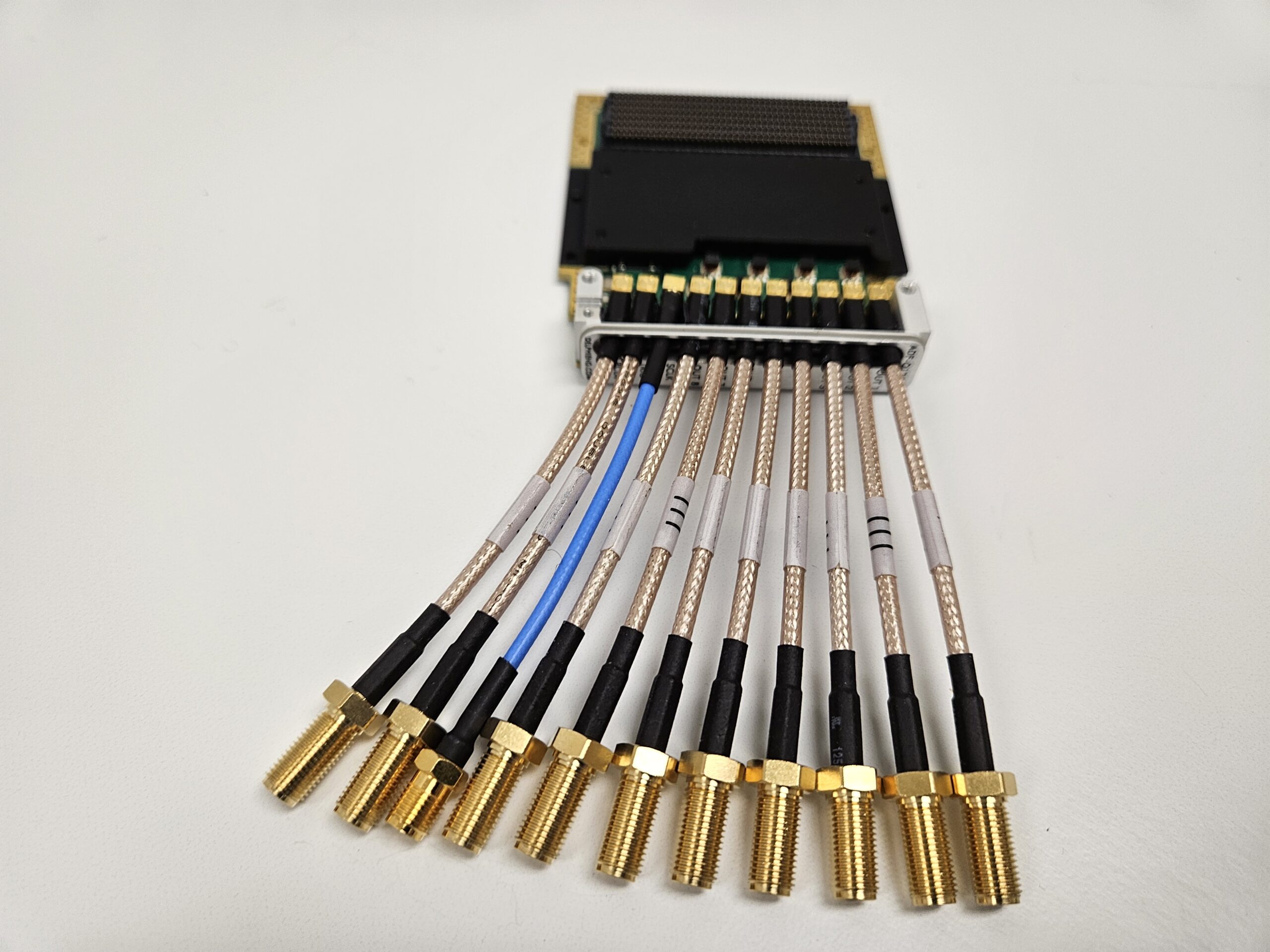

The DAC-O12G16 FMC+ module from DEG is a high sample rate, 16 bit octal channel DAC module. The Analog Devices AD9177 DAC device operates at up to 12.0 Gsps in interpolation mode. A VITA 57.4-compliant FPGA Mezzanine Card (FMC+) interface, the DAC-O12G16 offers industry wide platform compatibility with AMD Versal and UltraScale+ FPGA carrier boards, including DEG’s performance-leading, PCI Express carrier products.
Target Applications
- Scene Generation
- Electronic Warfare
- Communications
- RF Signal Generation
