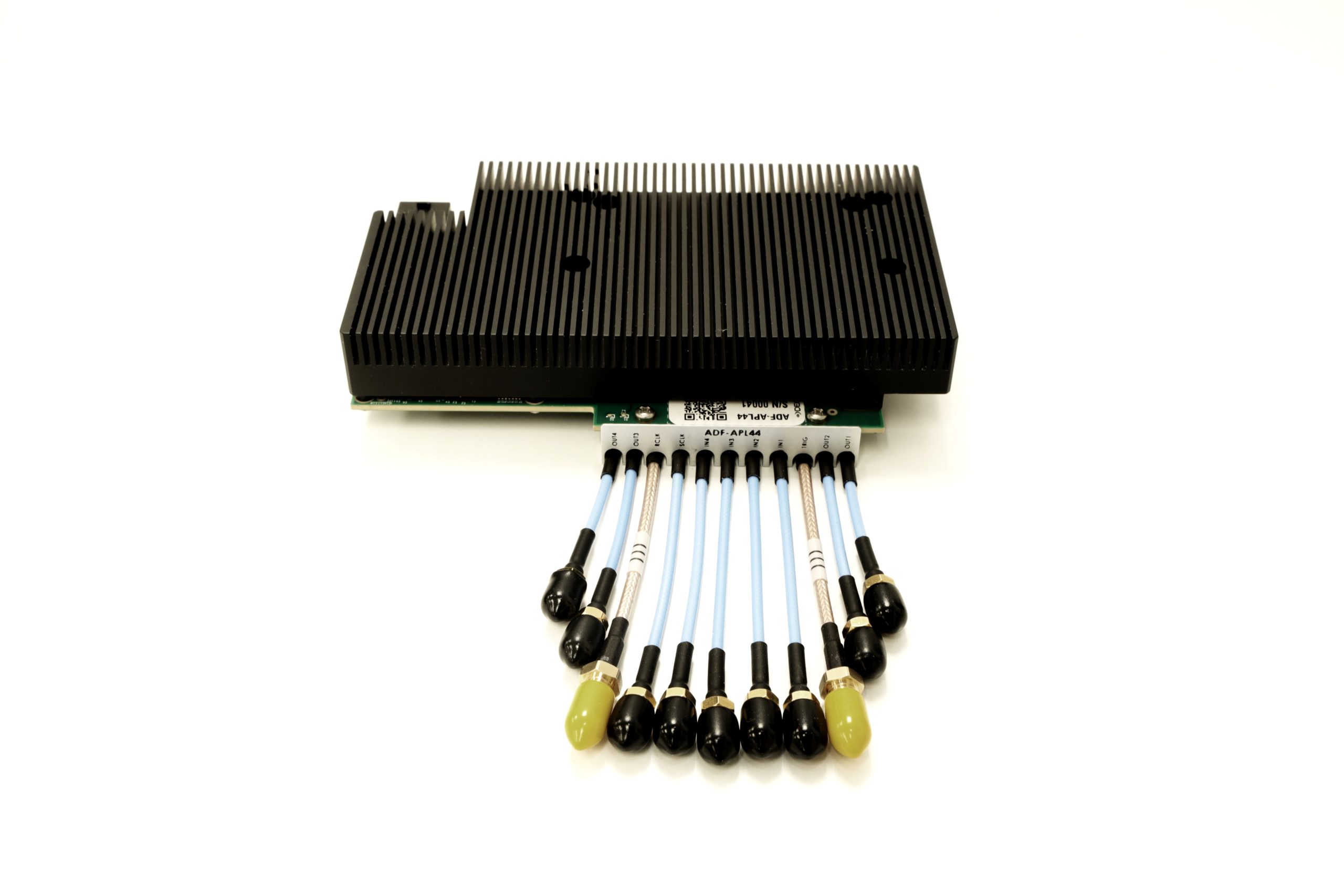

ADF-Q2820
Quad 28 GSPS 16-bit DAC
& Quad 20 GSPS 12-bit ADC
JESD204C Interface x24 Lanes @ 28.21 Gbps
- Analog Devices Apollo MxFE Part Number: AD9084
- Quad 16-bit, 28 GSPS DAC
- Quad 12-bit, 20 GSPS ADC
- Designed for AMD Versal and UltraScale+ FPGA Carrier Boards
- Configurable digital up/down conversion (DDC/DUC)
- Modified FMC+ Form Factor
- Compatible with DEG’s PG5 GEN 5.0 x16 PCIe Carrier Board
Download Datasheet
Please fill out form below to download datasheet.
* INDICATES REQUIRED FIELD

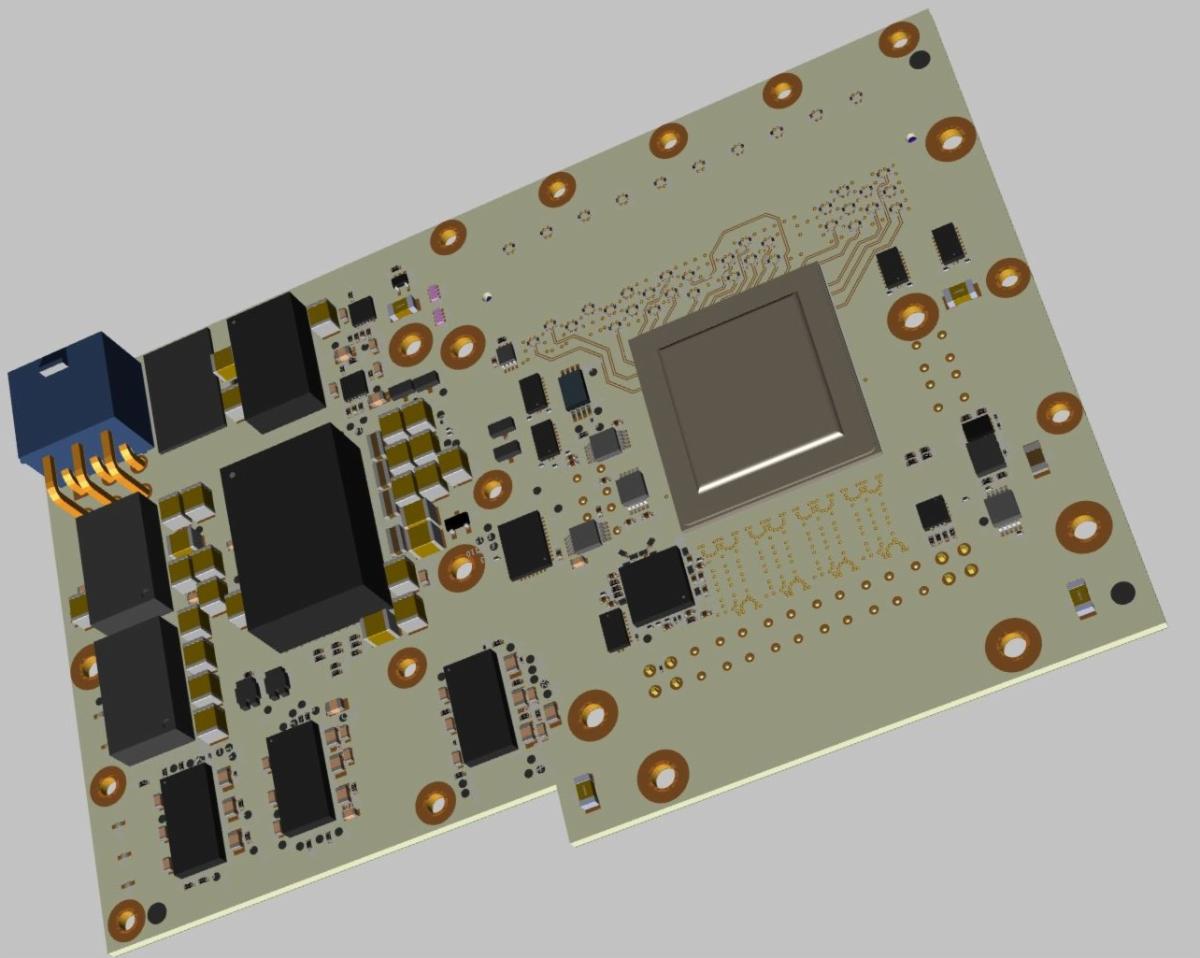

The DEG ADF-Q2820 Module leverages the Analog Devices AD9084 Apollo MxFE (Mixed Signal Front End) transceiver technology. This highly integrated device includes a quad 16-bit, 28 GSPS digital-to-analog converter (DAC) and a quad 12-bit, 20 GSPS analog-to-digital converter (ADC). The ADF-Q2820 features a 24-lane, 28.21 Gbps JESD204C transceiver port, an on-chip clock multiplier, digital signal processing capability and supports four transmitter channels and four receiver channels.
The ADF-Q2820 offers industry-wide platform compatibility with AMD Versal and UltraScale+ FPGA carrier boards, including DEG’s performance-leading, PCI Express carrier products.
Target Applications
- Direct RF Sampling:Up to X-Band
- Electronic Warfare
- SIGINT
- SATCOM
- Phased Array RADAR
